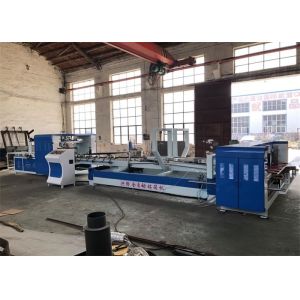

Corrugated Carton Box Packaging Machine

Name: Corrugated Carton Box Packaging Machine
Brand: xinglong
Price: 1 USD

China Corrugated Carton Box Packaging Machine wholesale

Brand Name : xinglong

Model Number : XL-AFG

Certification : CE

Place of Origin : Hebei

MOQ : 1set

Price : Negotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10set/month

Delivery Time : 10-20days

Packaging Details : PE film

Condition : New

Driven type : electric

Production capacity : 120m /minute

Automatic grade : Automatic

feeding way : belt suction

voltage : 380/415/440V

lead time : 7-20days

Weight : 4000kg

Warranty : 1 Year

Application : Machinery & Hardware,Food,Medical,Beverage,Apparel

Color : client request

Box forming : Folder gluer

Contact Now

Corrugated Carton Box Packaging Machine Of Automatic Folder Gluer Machine

automatic glue machine is consist of three parts,which is paper feeding part, gluing and folding part and counting and stacking part. Automatic paper feeding, automatic fold and glue, automatic counting and stacking output. The operation is simple and reliable. The speed can reach 100-180 pieces per minute. Advanced and reasonable structure design and manufacture, it demands for cultural level of operators is not high, and operators will be able to handle all operating procedures in one or two working days, and protect the safety of operating personnel.

Main Technology Parameters:

Model	ZXJ-QⅠ2600	ZXJ-QⅠ2800	ZXJ-QⅠ3000
Max cardboard size	1200×2400	1200×2600	1200×2800
Min cardboard size	170*450	170*450	170*450
Dimension	L12500×W3000×H1600	L12500W3200H1600	L12500W3400H1600
Motor power	10kw	12kw	12kw
Machine weight	5500kg	6500kg	7500kg
Application board thickness	3layer or 5layer

Corrugated Carton Box Packaging Machine

Model		ZXJ-QⅠ2600	ZXJ-QⅠ2800	ZXJ-QⅠ3000
A	Max	880mm	880mm	880mm
A	Min	80mm	80mm	80mm
B	Max	2400mm	2600mm	2800mm
B	Min	700mm	700mm	700mm
C	Max	840mm	840mm	840mm
C	Min	160mm	160mm	160mm
D	Max	1200mm	1200mm	1200mm
D	Min	300mm	300mm	300mm

Corrugated Carton Box Packaging Machine
